EQUIPMENT & FILTRATION CATALOG

Product Order & Request Form

Configure housing filters, bag filters, and industrial glycol quantities directly within each product category section below.

Matrix Equipment & Solutions Hub

Select a product line below to view technical specifications and configure orders.

Single Bag Filters

Commercial-grade 304 stainless steel housings engineered for continuous high-efficiency filtration.

• Sizes #1, #2, & #4
• Up to 120 GPM Flow Rates
• 1 to 50 Micron Bag Filters

Sidestream Filters

Precision multi-cartridge string wound housings engineered for fine particulate reduction.

• 10" & 20" Housings
• Up to 125 PSI Operations
• Cotton, PP, & Glass Fiber

Industrial Glycol

Inhibited heat transfer fluids formulated for freeze protection and long-term corrosion prevention.

• Ethylene & Propylene Blends
• 5-Gal Pails, Drums, & Totes
• Ready-to-Ship Formulations

Single Bag Filter Housings

Commercial-grade 304 stainless steel filtration designed for high efficiency, quick filter bag changes, and continuous industrial service.

Select Bag Filter Housing Size:

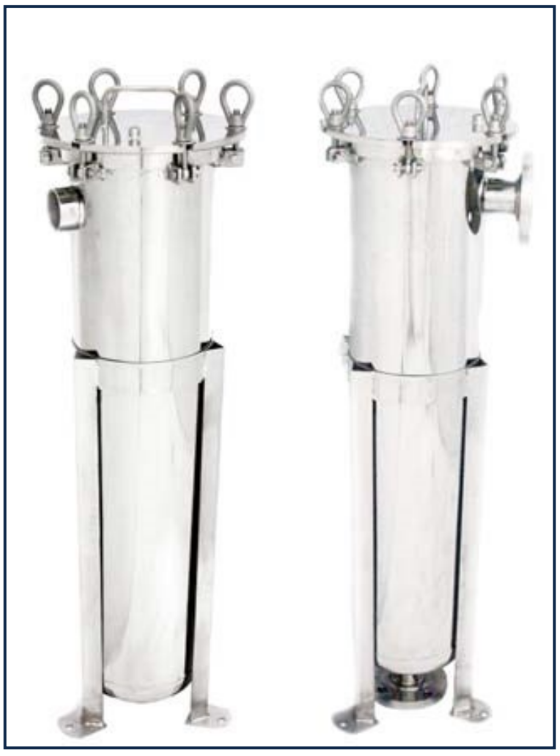

#1 Single Bag Filter

#1 304ss Bag Filter Housing, 2” NPT with 6 Bolt closure

Code: NBHSB12N1415

Max Flow: 120 gpm | Max Working Pressure: 150 PSI | Inlet/Outlet: 2” FNPT

Material of Construction: 304 Stainless Steel

Max Allowable Temp: 300 F

Seals: EPDM

Vents and drains: FNPT

Legs: Adjustable mounting legs

Bag Size: #1 bag size-7” x 16”

Housing Quantity

Filter Options for #1 Bag Size (7" x 16") Pack Multiples: 24 / 50 / 100

1 µm

1 Micron Polypropylene

Fine particulate capture

Pack Size

# Packs

Total0 units

5 µm

5 Micron Polypropylene

Felt media w/ plastic ring

Pack Size

# Packs

Total0 units

10 µm

10 Micron Polypropylene

General clarification rating

Pack Size

# Packs

Total0 units

25 µm

25 Micron Polyester

High temperature rating

Pack Size

# Packs

Total0 units

50 µm

50 Micron Polyester Mesh

Reusable coarse mesh screen

Pack Size

# Packs

Total0 units

#2 Single Bag Filter

#2 304ss Bag Filter Housing, 2” NPT with 6 Bolt closure

Code: NBHSB22N1415

Max Flow: 120 gpm | Max Working Pressure: 150 PSI | Inlet/Outlet: 2” FNPT

Material of Construction: 304 Stainless Steel

Max Allowable Temp: 300 F

Seals: EPDM

Vents and drains: FNPT

Legs: Adjustable mounting legs

Bag Size: #1 bag size-7” x 32”

Housing Quantity

Filter Options for #2 Bag Size (7" x 32") Pack Multiples: 24 / 50 / 100

1 µm

1 Micron Polypropylene

Fine particulate capture

Pack Size

# Packs

Total0 units

5 µm

5 Micron Polypropylene

Felt media w/ plastic ring

Pack Size

# Packs

Total0 units

10 µm

10 Micron Polypropylene

General clarification rating

Pack Size

# Packs

Total0 units

25 µm

25 Micron Polyester

High temperature rating

Pack Size

# Packs

Total0 units

50 µm

50 Micron Polyester Mesh

Reusable coarse mesh screen

Pack Size

# Packs

Total0 units

#4 Single Bag Filter

#4 304ss Bag Filter Housing, 1” NPT with 3 Bolt closure

Max Flow: 80 gpm | Max Working Pressure: 150 PSI | Inlet/Outlet: 1” FNPT

Material of Construction: 304 Stainless Steel

Max Allowable Temp: 300 F

Seals: EPDM

Vents and drains: FNPT

Legs: Adjustable mounting legs

Housing Quantity

Filter Options for #4 Bag Size Pack Multiples: 24 / 50 / 100

1 µm

1 Micron Polypropylene

Fine particulate capture

Pack Size

# Packs

Total0 units

5 µm

5 Micron Polypropylene

Felt media w/ plastic ring

Pack Size

# Packs

Total0 units

10 µm

10 Micron Polypropylene

General clarification rating

Pack Size

# Packs

Total0 units

25 µm

25 Micron Polyester

High temperature rating

Pack Size

# Packs

Total0 units

50 µm

50 Micron Polyester Mesh

Reusable coarse mesh screen

Pack Size

# Packs

Total0 units

Sidestream Filter Housings

Precision multi-cartridge string wound housings for fine particulate reduction across standard housing sizes.

Select Housing Size:

10" Sidestream Filter

Filter Housings

Sidestream Housing - 10" Housing

Code: SSV-10

Max Flow: 15 GPM | Max Pressure: 125 PSI | Inlet/Outlet: 3/4" FNPT

Specs: Compact sidestream design for fine sediment removal.

Housing Qty

String Options for 10" Housing Pack Multiples: 24 / 50 / 100

1 µm

1 Micron Cotton Wound

Fine sediment polishing

Pack Size

# Packs

Total0 units

5 µm

5 Micron Polypropylene

Standard hydronic rating

Pack Size

# Packs

Total0 units

10 µm

10 Micron Polypropylene

General loop filtration

Pack Size

# Packs

Total0 units

25 µm

25 Micron Glass Fiber

High temperature rating

Pack Size

# Packs

Total0 units

20" Sidestream Filter

Filter Housings

Sidestream Housing - 20" Housing

Code: SSV-20

Max Flow: 30 GPM | Max Pressure: 125 PSI | Inlet/Outlet: 1" FNPT

Specs: Extended capacity housing for moderate flow systems.

Housing Qty

String Options for 20" Housing Pack Multiples: 24 / 50 / 100

1 µm

1 Micron Cotton Wound

Fine sediment polishing

Pack Size

# Packs

Total0 units

5 µm

5 Micron Polypropylene

Standard hydronic rating

Pack Size

# Packs

Total0 units

10 µm

10 Micron Polypropylene

General loop filtration

Pack Size

# Packs

Total0 units

25 µm

25 Micron Glass Fiber

High temperature rating

Pack Size

# Packs

Total0 units

Industrial Glycol Solutions

Premium inhibited ethylene and propylene glycol heat transfer fluids for closed-loop thermal and freeze protection systems.

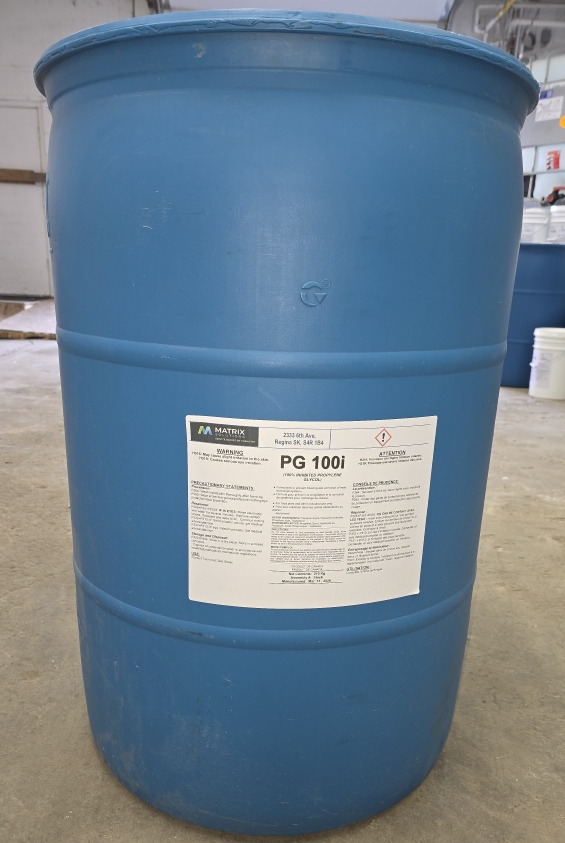

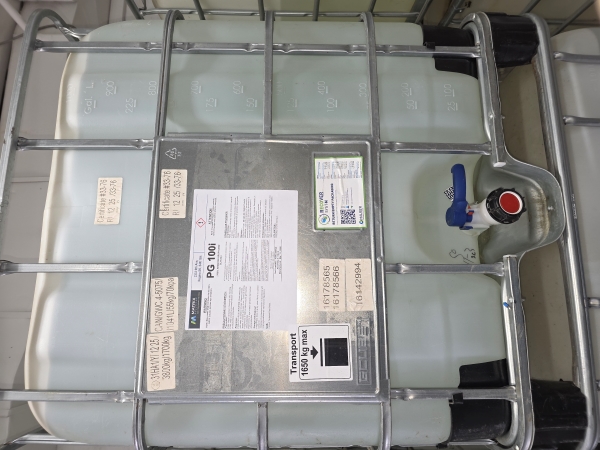

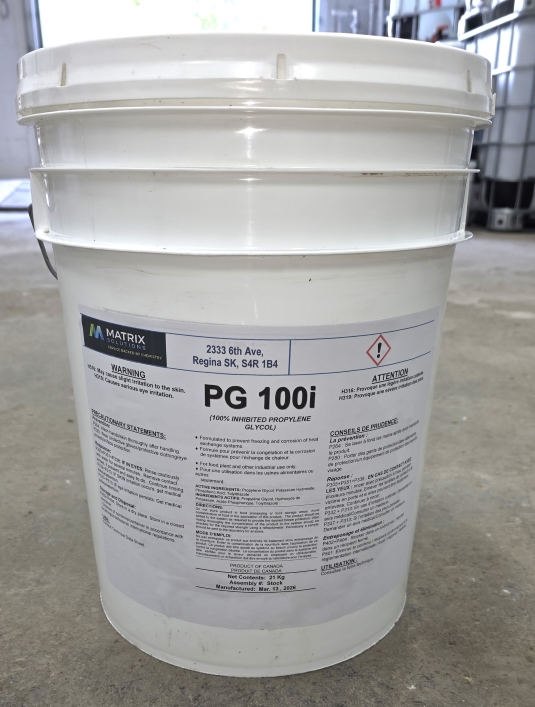

PG 100i - Inhibited 100% Propylene Glycol Toxicity: Nontoxic

Matrix Solutions PG100i Propylene Glycol

Matrix Solutions PG100i Propylene Glycol, is a formulation of pure propylene glycol and a dipotassium phosphate-based inhibitor. Inhibited Propylene glycol is nontoxic & noncorrosive for safe and effective freeze protection for refrigeration systems, chillers, hydronic heating systems, and Geothermal Closed Loop Systems.

Applications: Most commonly used in hydronic heating and chilled systems as a high-quality heat transfer fluid.

Colour: Clear

pH: 10

Temperature range: -50°F to 250°F (-46°C to 121°C)

Reserve alkalinity (min): 10.0ml

Toxicity: nontoxic

Solubility: Water Soluble

Freeze protection: To -60°F (-51°C)

Burst protection: To below -100°F (-73°C)

Packaging / Container Size

Quantity

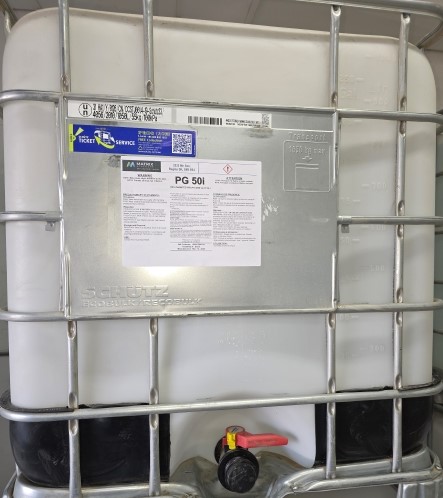

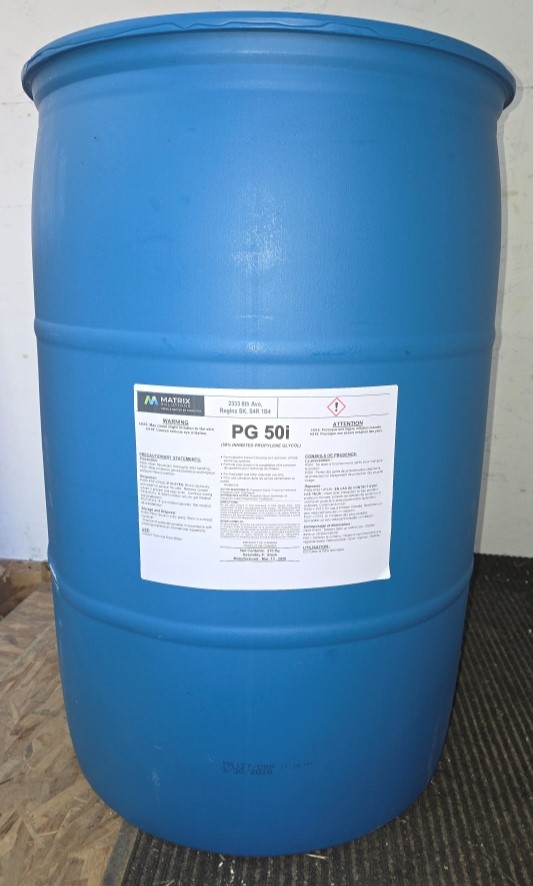

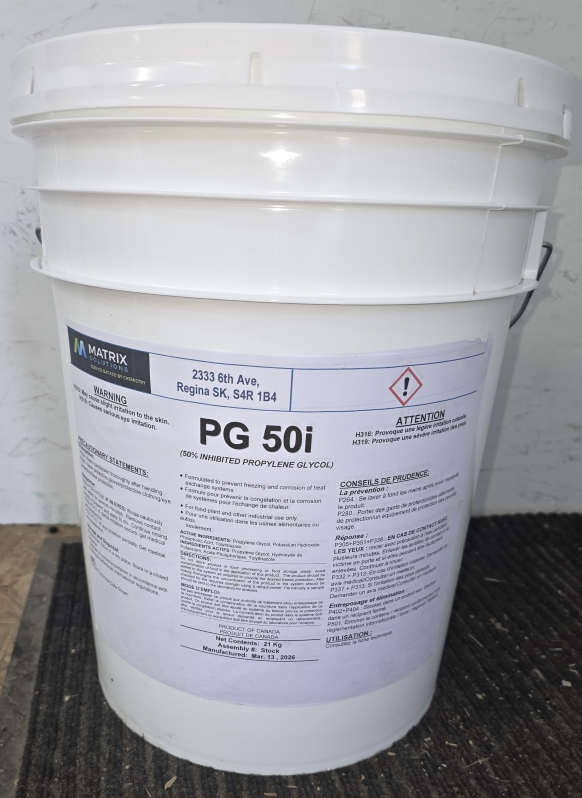

PG 50i - Inhibited 50% Propylene Glycol Toxicity: Nontoxic

Matrix Solutions PG50i Propylene Glycol

Matrix Solutions PG50i Propylene Glycol, is a formulation of pure propylene glycol, reverse osmosis water and a dipotassium phosphate-based inhibitor. Inhibited 50%Propylene glycol is nontoxic & noncorrosive for safe and effective freeze protection for refrigeration systems, chillers, hydronic heating systems, and Geothermal Closed Loop Systems.

Applications: Most commonly used in hydronic heating and chilled systems as a high-quality heat transfer fluid.

Colour: Clear

pH: 10

Temperature range: -50°F to 250°F (-46°C to 121°C)

Reserve alkalinity (min): 10.0ml

Toxicity: nontoxic

Freeze protection: To -60°F (-51°C)

Burst protection: To below -100°F (-73°C)

Packaging / Container Size

Quantity
